Product Details

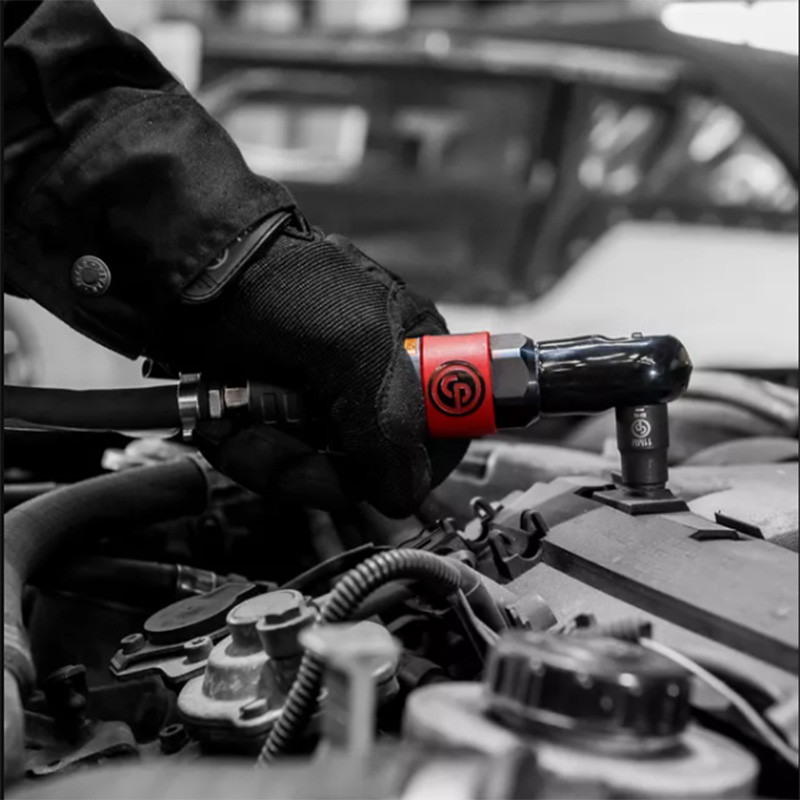

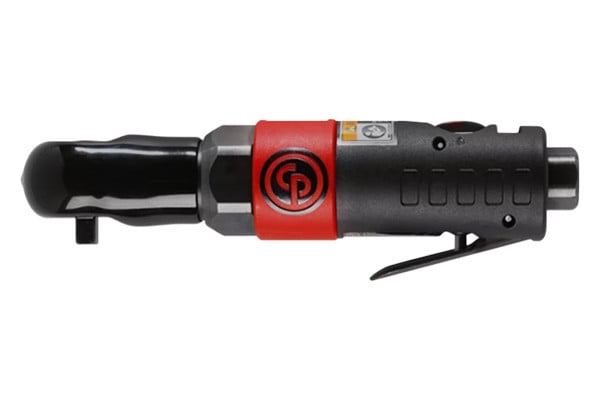

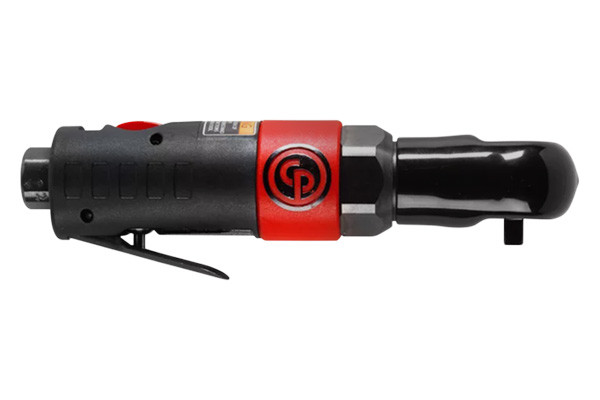

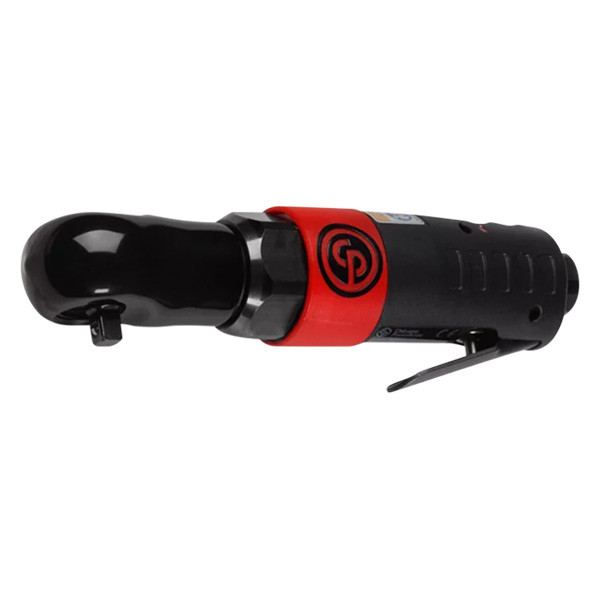

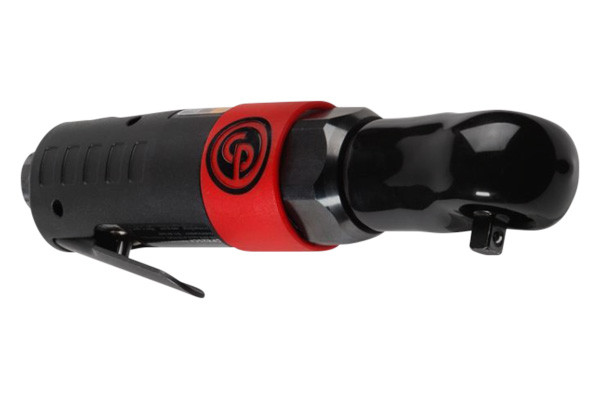

1/4" Drive 26 ft lb Air Ratchet (825C) by Chicago Pneumatic®. Chicago Pneumatic offers a wide range of powerful pneumatic ratchet wrenches from 1/4' to 1/2" square drive for every task. Due to their small size and light weight, pneumatic ratchets are an excellent choice for fastening in tight or cumbersome applications.
Specifications
Actual air consumption: 15.5 cfm |
Air inlet thread size: 1/4" |
Average air consumption: 3.2 cfm |
Box dimensions: 1.97x4.33x7.48" |
European Sound standard: ISO-15744 |
European Standards: EN ISO 11148-6:2012 |
Free speed: 280 rpm |
Height: 1.3 " |
Length: 6.6" |
Max torque: 26 ft.lbs |
Min. hose size: 3/8" |
Net weight: 1.1 lb |
Over carton: 11x9.05x15.75" |
Side to center: 3/4" |
Sound Power: 93 db(A) |
Sound pressure: 82 db(A) |
Sound uncertainty: 3 db(A) |
Square drive: 1/4" |
Vibration: 4 m/s² |
Vibration ISO: ISO-28927-2 |
Vibration uncertainty (K): 1-1/2 m/s² |
Width: 1-1/2" |
Working torque Range: 4 - 18 ft.lbs |
Features
- Aluminum body with composite housing to insulate from cold
- Fast rundown 280 RPM
- Short & Wide lever
- Back exhaust avoids blowing dirt and dust
- New power easy-to-use regulator to regulate speed from zero to max speed
- Flat forward and reverse button
- Improved head material
- Head composite protective cover supplied with the tool
- Shank with ball retainer
