Specifications
| I.D | |
|---|---|
| O.D | |
| Length | |
| Hose | |
| Max PSI | |
| With or Without A Hose | |
| Ship Weight (lbs) | |
| Overall Dimensions (W) (H) (L) | |
| Mounting Pattern (M) (N) | |
| Base (X) (Y) |
Features
- Machined from solid brass 90º full-flow NPT swivel inlet for fuel dispensing applications
- Swivel seals: Nitrile
- Guide arm adjusts to wall, floor, vehicle & overhead positions
- Solid one piece, heavy gauge 1/4" steel base & support post for maximum stability
- 1" solid steel axle & lubricated precision bearings for smooth rotation
- Enclosed factory tuned & matched cartridge-style spring motor
- Non-corrosive stainless steel spring, pawl & zinc plated ratchet
- Multi-position lock ratchet mechanism secures hose at desired length
- Professional grade heavy duty steel construction
- Rolled edges & ribbed discs provide strength & safety
- Leading 2-year manufacturer's limited warranty
- Made in the U.S.A. - Sold & Supported Worldwide
- SWIVEL - Machined from solid brass 90º full-flow NPT swivel for fuel dispensing applications
- CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance
- CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety
- 1/4" STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Exclusive Super Hub™dual axle support system
- MULTI-POSITION GUIDE ARM - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions
- OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop,fuel dispensing hose, and sturdy permanently lubricated precision bearings.
Product Details

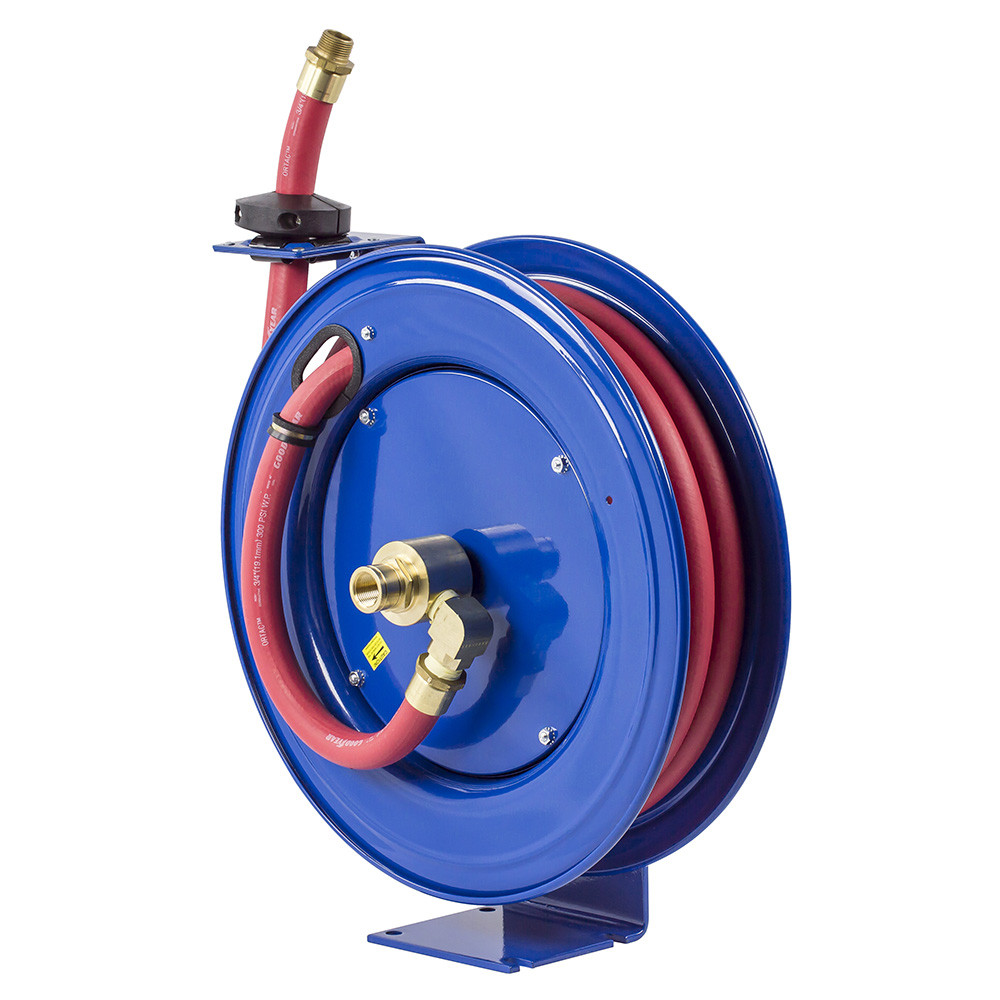

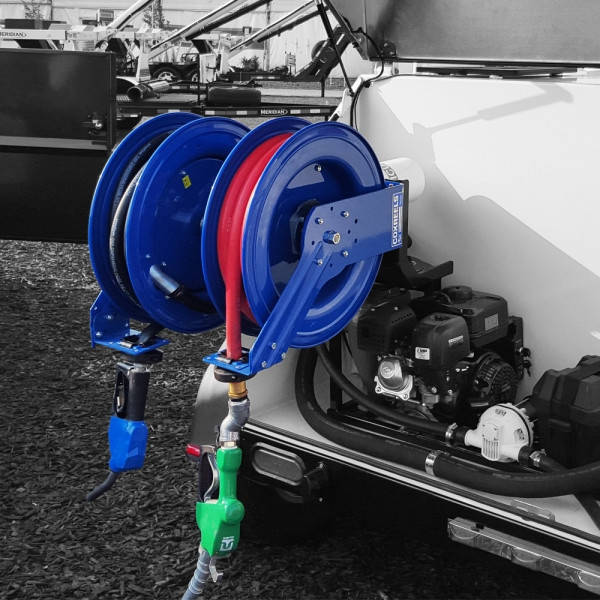

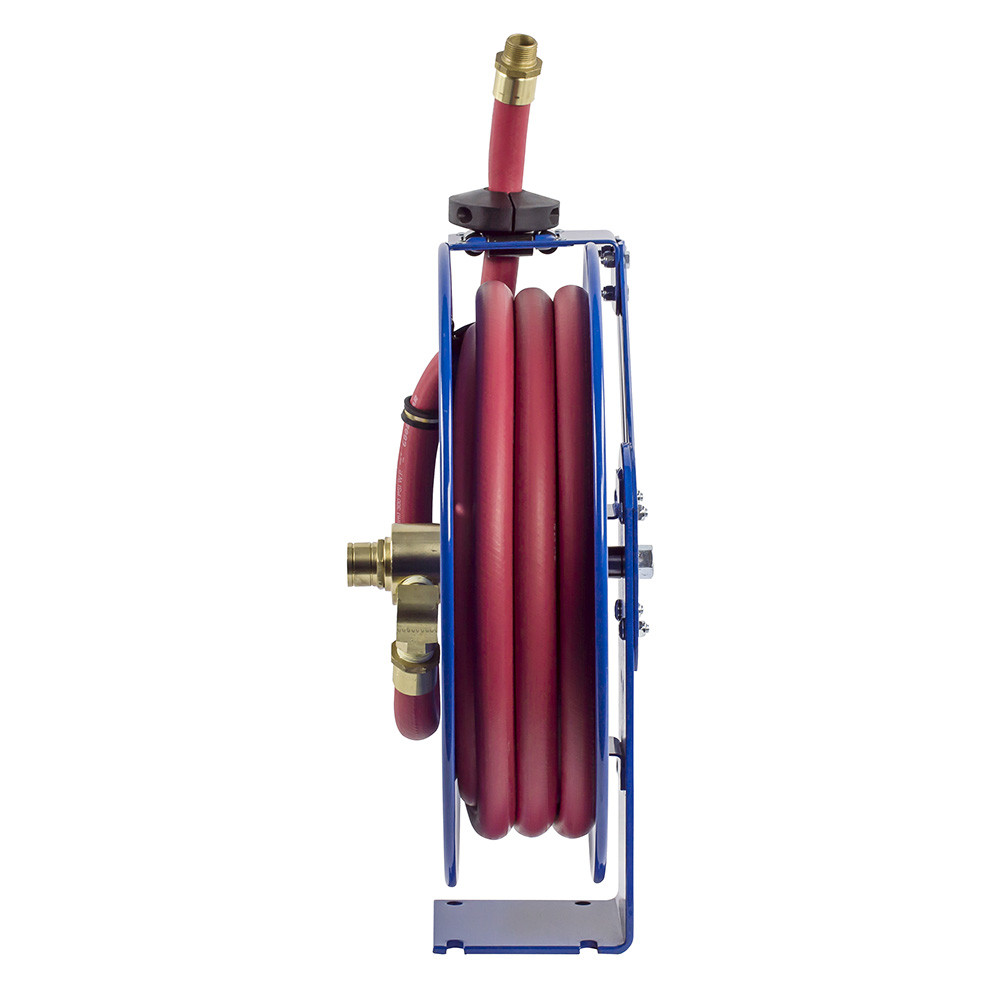

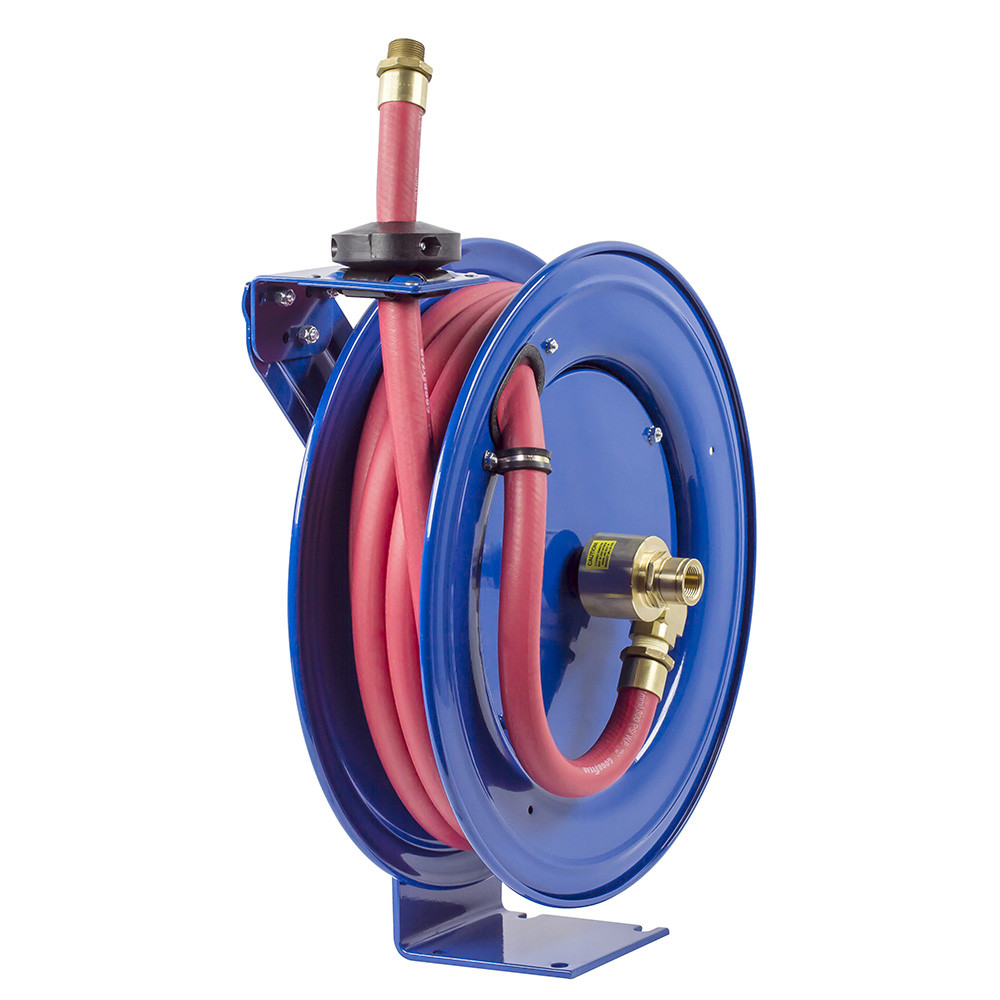

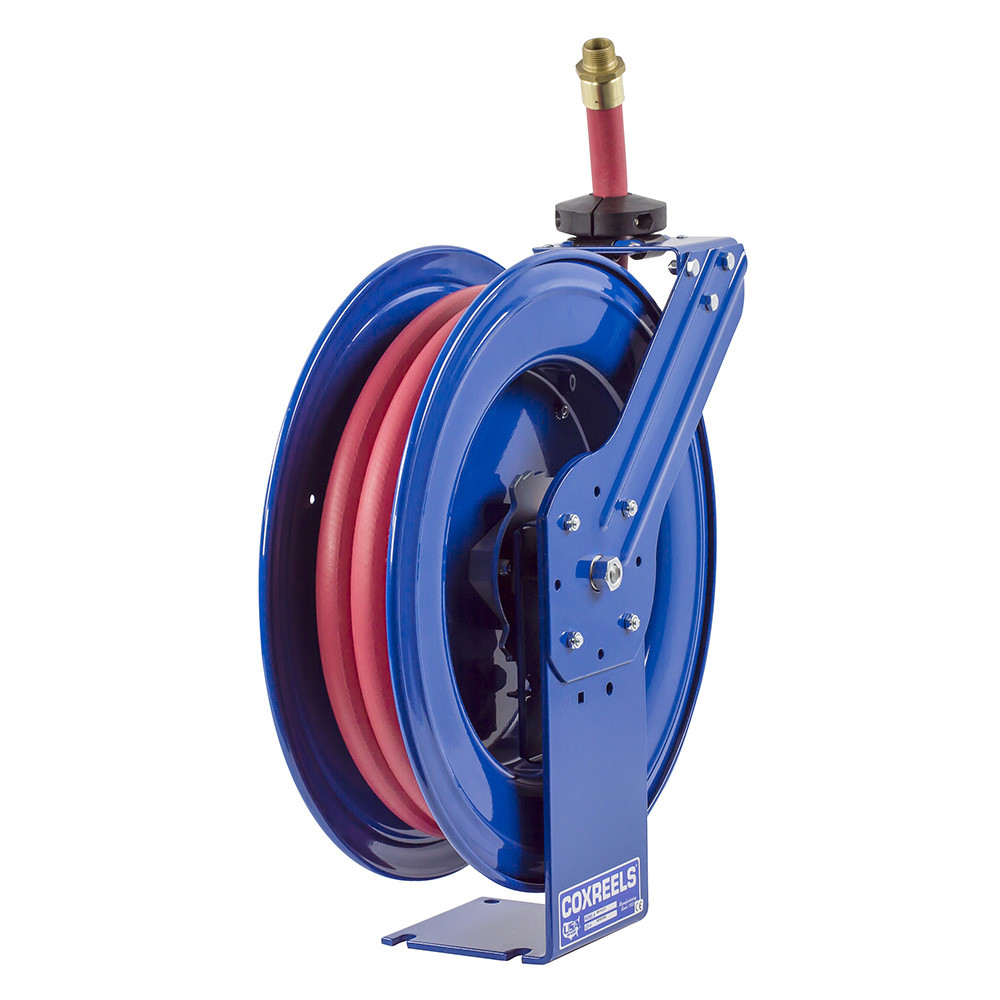

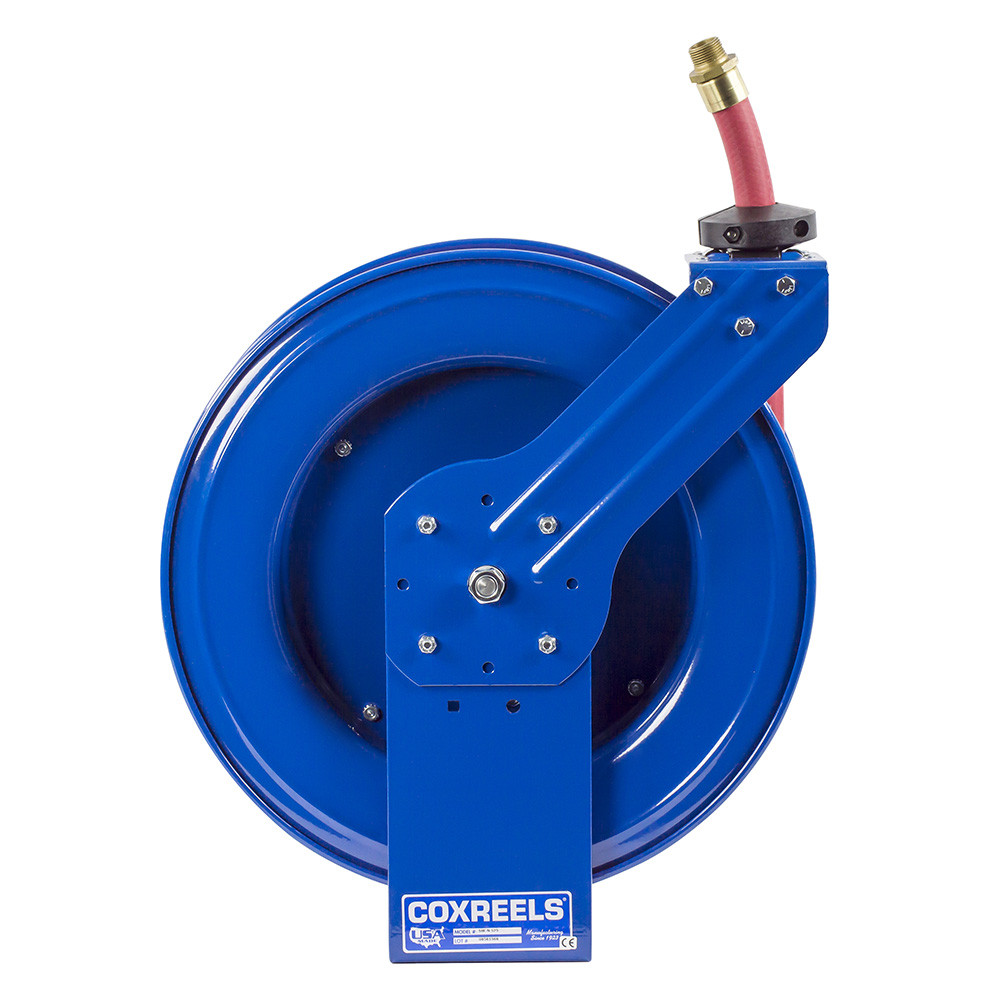

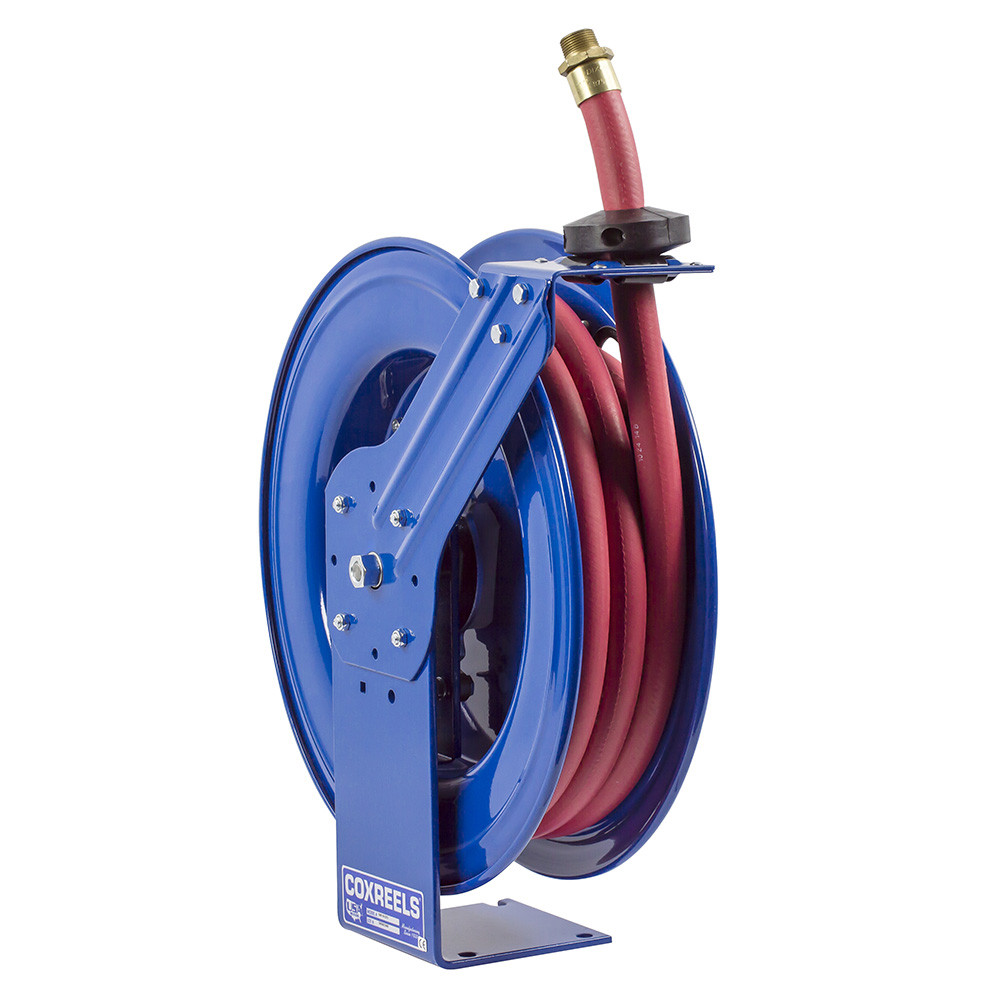

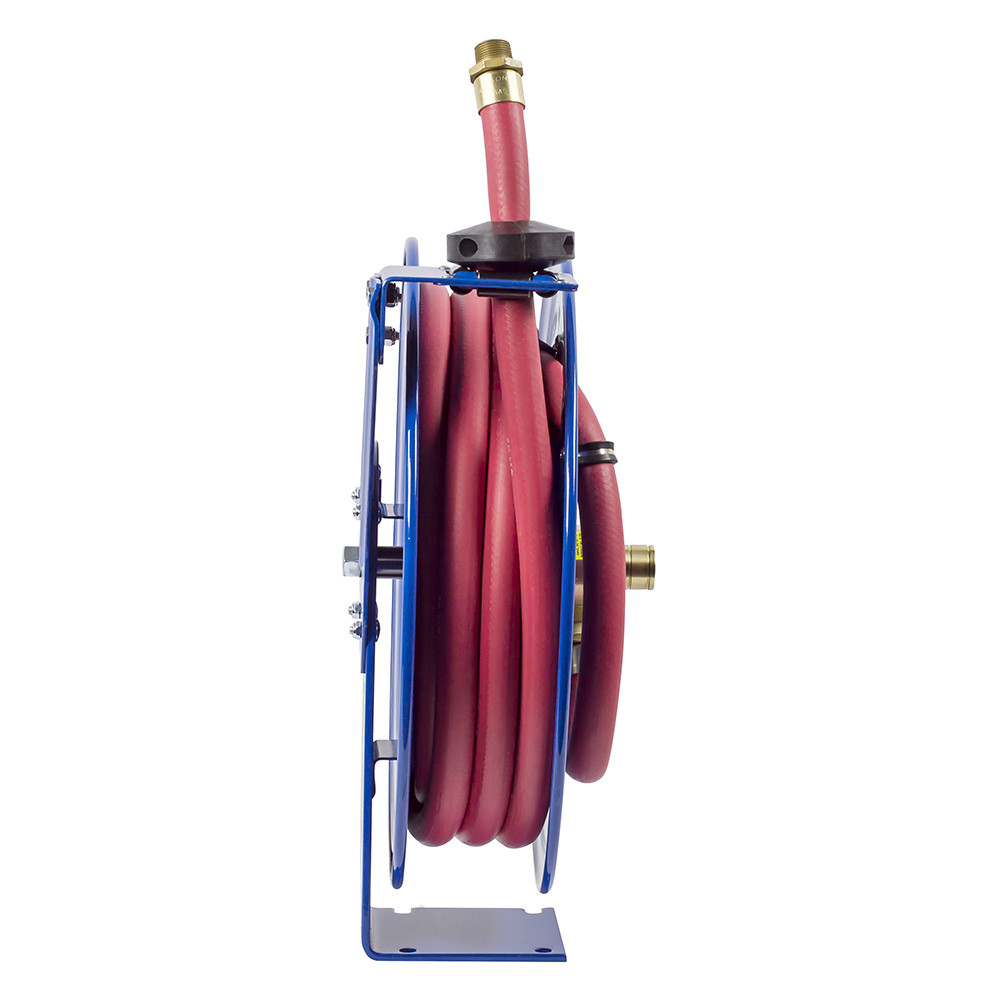

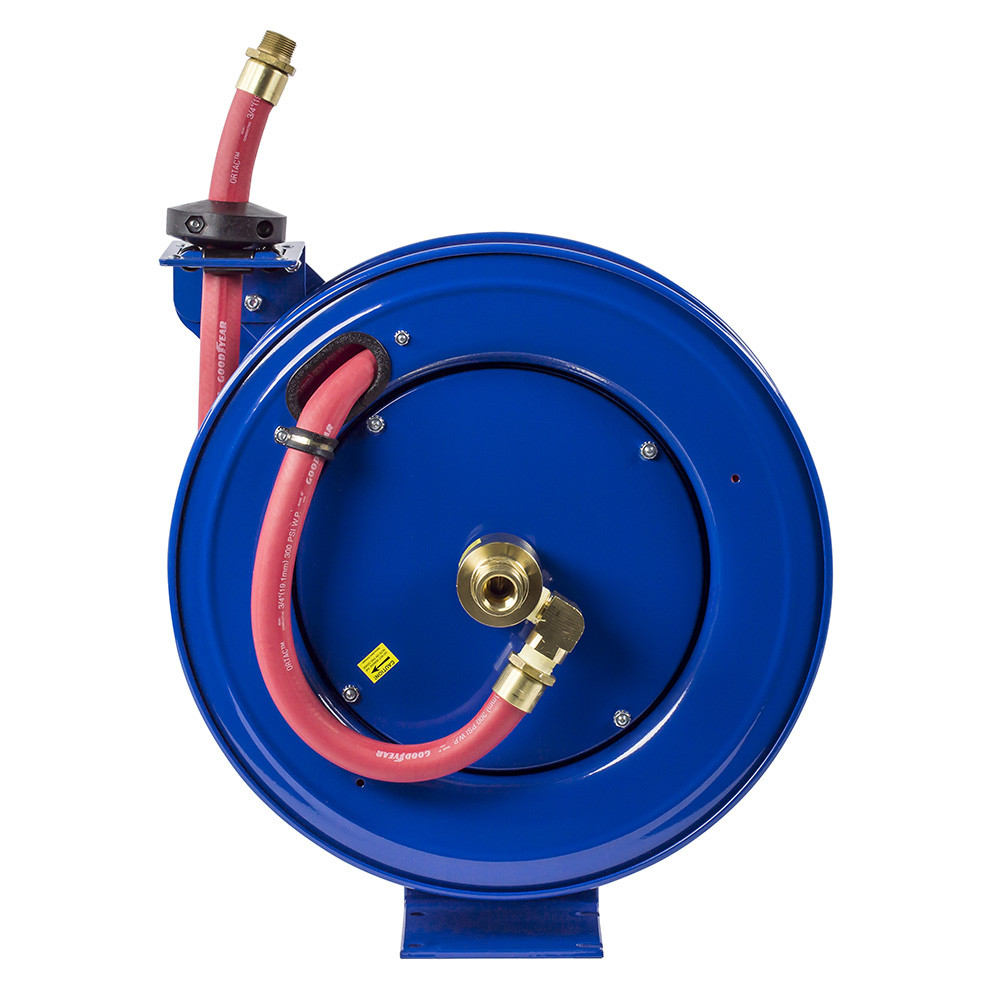

SH-Fuel Series Spring Driven Specialty Reel by Coxreels®. COXREELS® Fuel Dispensing Reels are designed to handle various non-aromatic fuel applications including diesel, kerosene, fuel oil and heating oil. Coxreels® professional fuel dispensing heavy-duty single pedestal (SH Series) reels are an essential component found in utility, ground support, and bulk liquid handling transport services mounted on fuel storage & dispensing systems, fuel/lube trucks, aircraft refuelers, and tank trucks. The convenient uncoiling systems with the added hose control allow the operator to efficiently handle fuel transfers.
