Specifications
| Material | |
|---|---|
| Cup Size | |
| Style | |
| Quantity | |
| Part # |
Features
- Ready to weld right out of the packaging
- Consistent top-tier Quality
- No material waste on our pre-cut pieces(saves time and material)
- Precision CNC machining(*on machined products)
Product Details

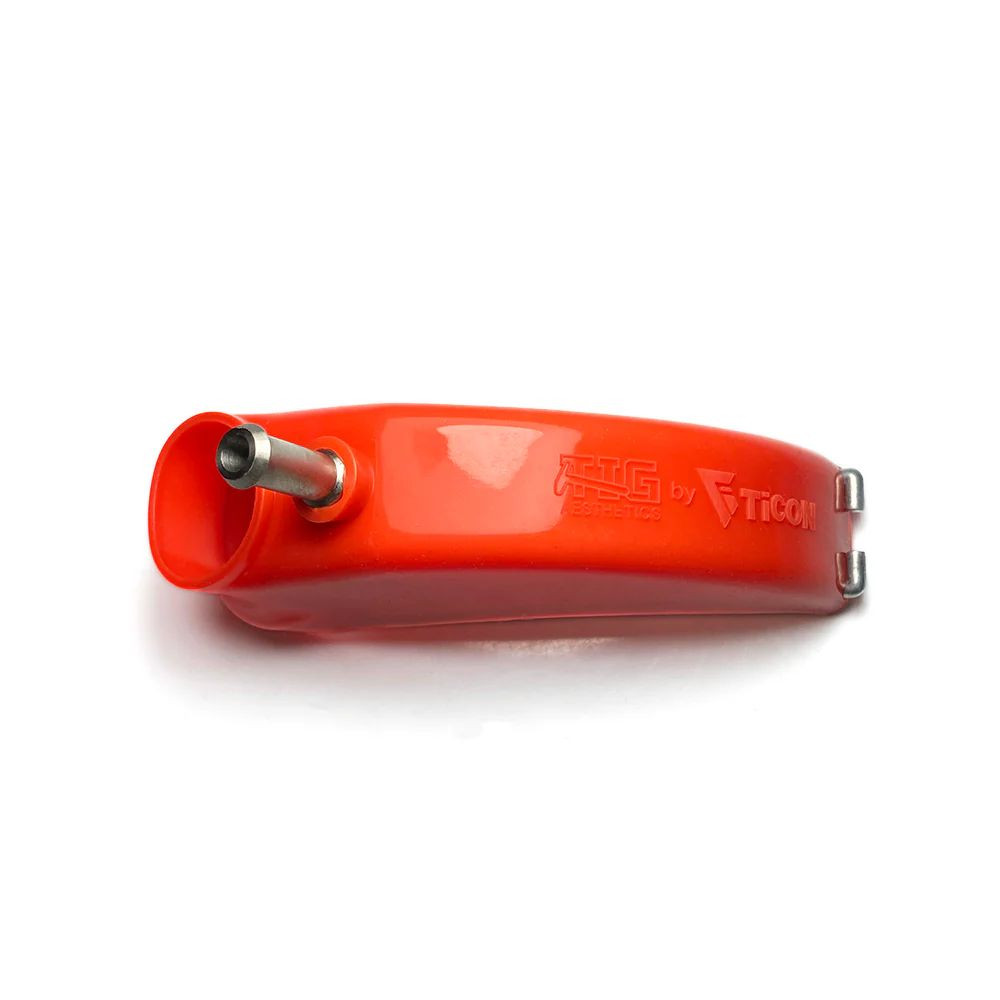

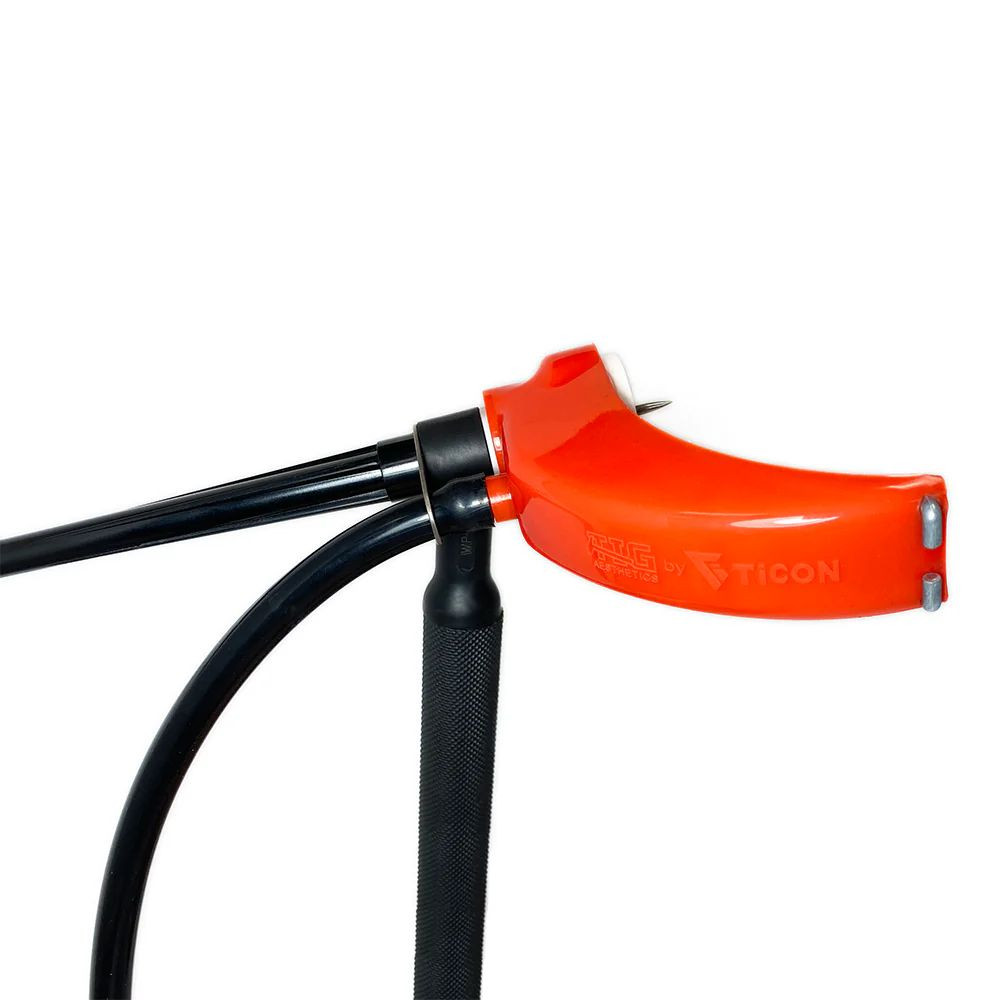

Tig Aesthetics Silicone Trailing Shield by Ticon®. #16 BBW. TIG Aesthetics and Ticon Industries are eager to announce the latest Innovation in our TIG welding lineup! The TIG Aesthetics Trailing Shield. It is the Ultimate solution for welding aerospace grade metals where an inert environment is required. Manufactured from high temperature silicone, the Trailing Shield withstands the heat absorbed by any #16 or 1" welding cup and will hold its structural integrity to 100+ amp welds. The Trailing Shield also includes a built in drag bar on the tail of the shield to assist in the prevention of direct heated material contact. **please note that the silicone body is meant to hover above and not make contact with the actual weld seam** Our proven, multi-layer screen diffuser combined with the shower head diffuser fitting integrate seamlessly with the silicone while providing additional rigidity to the body of the shield; providing excellent argon diffusion to the weldment. The reinforced screen diffuser allows for the radius to be adjusted by slightly bending the stainless steel diffuser.

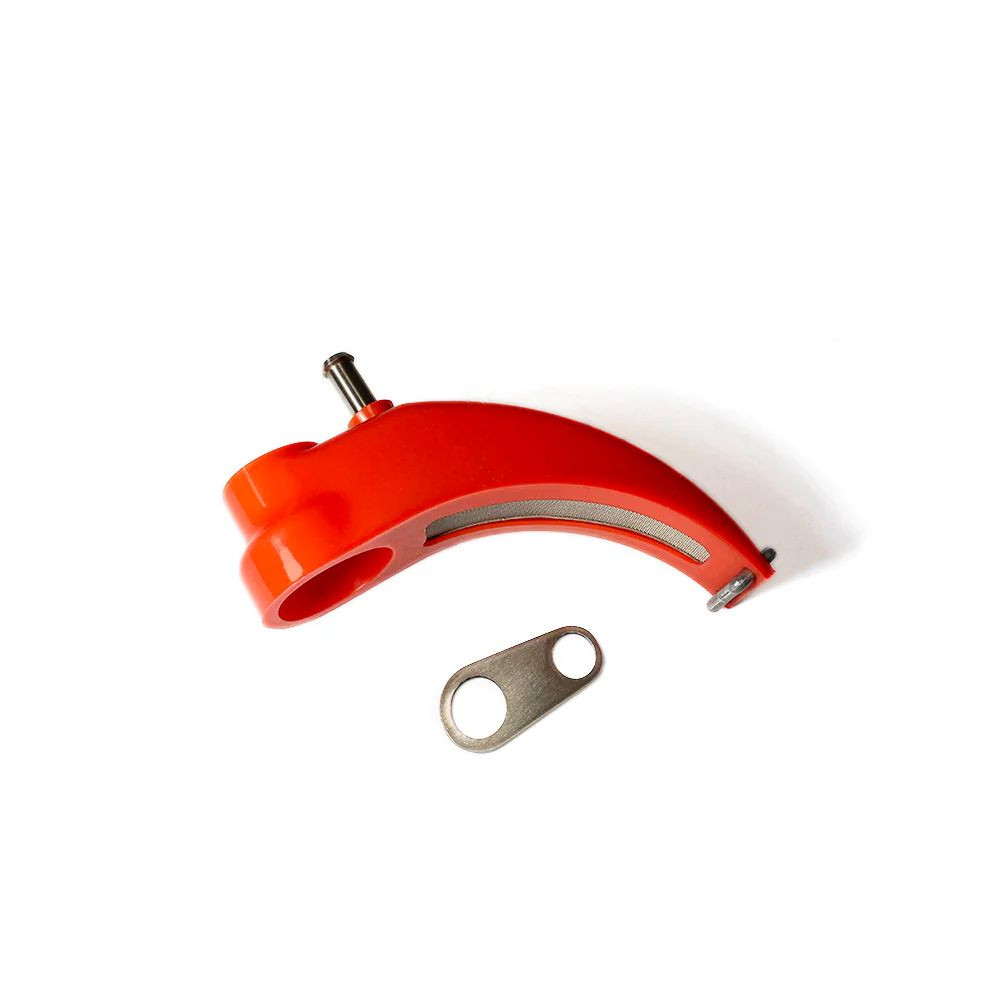

'Included hose retention tab is designed to snap on to the back cap and align the argon inlet hose perfectly straight into the shield body, ensuring consistent results when manipulating torch angle during the weld process. (we recommend using TIG Aesthetics 6mm Argon Purge line )[:os:]Recommended gas flow for the Trailing Shield is 15-20 SCFH *dependent on weldment and environment*[:os:]Ensure a proper setup by running a test pass on some scrap material to solidify personal preference on flow and speed. [:os:]Silicone trailer chassis - Green x 1 Stainless Steel Mesh Diffuser x 1 Titanium Shower Head Diffuser fitting x 1 Titanium Hose Retention Tab x 1[:os:]Specifications: Material: Silicone Size: Furick #16 BBW Style: Flat Trailing Shield Quantity: 1 Kit Part #: 903-78016-1000
